Building an MCP Server: From Prototype to Production Retrieval Layer

Why this article exists

Till's step-by-step guide gets you to your first working MCP server. Niclas' publisher article shows why an MCP server is strategic for content businesses.

This article fills the gap in between: what has to happen for the prototype to become a layer you can hang your business off? I'm writing this from the CTO seat at Till Freitag — after six MCP server projects, three of which are now in production.

The five layers a prototype doesn't have

A good MCP prototype is 200 lines of TypeScript and a handful of tool definitions. A production-grade MCP server has five additional layers — none of them garnish, each its own small system.

1. Auth and permission model

The most common MVP mistake: a single API key that can do everything. In production you need:

• OAuth 2.1 with Dynamic Client Registration — so every Claude, Codex or Cursor workspace gets its own token
• Scoped tokens at the tool level: not every user can call every tool
• Tenant isolation — for multi-tenant SaaS, the tenant identifier belongs in every query, not in app code
• Audit log per tool call: who queried what, when, with which token

We usually use Supabase or Clerk as auth provider and write a thin middleware in the MCP server that validates incoming tokens and translates them into a permission context.

2. Retrieval strategy

This is where the server earns its name. A tool like search_documents is only as good as the layer beneath it:

• Hybrid search: BM25 plus vectors plus filters. Pure vector search is rarely enough.
• Re-ranking: Cohere Rerank or a small local model that narrows top-50 to top-5.
• Chunking strategy that fits the domain. Contracts chunk differently than product docs.
• Metadata filters as first-class citizens — date, source, confidentiality, language.

For most mid-market projects, pgvector (or Supabase Vector) plus Cohere Rerank plus a custom chunking pipeline is enough. Pinecone, Weaviate et al. only pay off at meaningful data volumes.

3. Caching

Agents are wasteful. They call the same tool multiple times in a row, often with slightly different arguments. Without a cache you'll notice on the LLM gateway bill.

• Request-level cache for identical tool calls (short TTL, e.g. 60 seconds)
• Embedding cache for recurring queries
• Negative cache for empty results, so expensive searches don't loop

Upstash Redis is our default — cheap, fast, edge-deployed.

4. Observability

When an agent gives weird answers, you want to see which tool calls it made, with what arguments, how long they took, what came back. Without that, you debug in the dark.

• Structured logs per tool call with trace ID
• Latency metrics per tool — agents give up on slow tools
• Token counting on the server side, not just client side
• Error tracking with Sentry or similar, with sampling

5. Update path for tool schemas

A tool's schema is an API — and APIs age. If you launch search_documents with three parameters today and need a fourth tomorrow, you have clients in the wild.

• Version tools explicitly (search_documents_v2) instead of breaking schemas
• Deprecation policy with a clear window
• Capabilities discovery designed so agents catch the change themselves

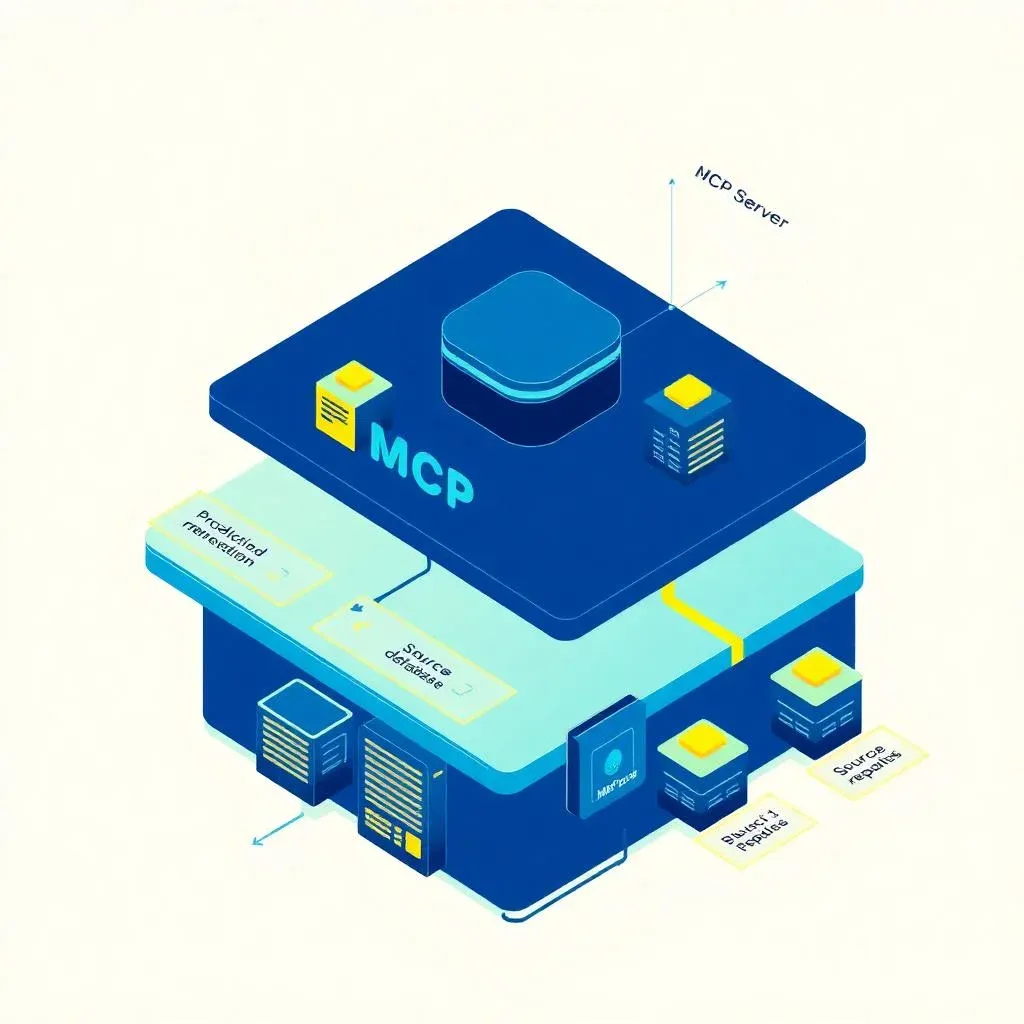

The architecture we currently recommend

For most mid-market clients, the stack looks like:

┌──────────────────────────────────────────────────────────┐
│  Claude / Codex / Cursor / Claude Cowork                 │
└─────────────────────────┬────────────────────────────────┘
                          │ MCP (HTTP/SSE)
                          ▼
┌──────────────────────────────────────────────────────────┐
│  MCP Server (TypeScript, Hono on Cloudflare Workers)     │
│  ├─ OAuth middleware (Supabase / Clerk)                  │
│  ├─ Tool router                                          │
│  ├─ Request cache (Upstash Redis)                        │
│  └─ Observability (Axiom / Logflare)                     │
└─────────────────────────┬────────────────────────────────┘
                          │
        ┌─────────────────┼─────────────────┐
        ▼                 ▼                 ▼
   Hybrid search     Source APIs       Vector store
   (pgvector +       (CRM, ERP,        (pgvector)
    BM25 + rerank)    DMS)

It's not the slickest architecture, but it's the cheapest one that holds up in production. Cloudflare Workers gives us sub-50ms edge latency across Europe, pgvector is plenty for most data sizes, Hono is small enough that the setup stands up in a day.

Anti-patterns we've seen more than once

• One huge query tool that does everything. Agents can't handle it. Five well-scoped tools with unambiguous verbs work much better.
• Copy-pasting tool descriptions from internal docs. Descriptions are prompts. Write them from the agent's perspective.
• Permissioning added later. It's 10x cheaper to nail the permission model before the first production call.
• No rate limiting. A looping agent can torch a cloud budget over a weekend.

Where time actually goes between prototype and production

In our projects, the rough split:

• 10% tool definitions and server skeleton
• 25% auth, OAuth flows, permission model
• 30% retrieval quality (chunking, ranking, evaluation)
• 15% caching, rate limiting, observability
• 20% iteration with real agents, tweaking tool schemas and descriptions

Anyone promising it in a week — look closely at the retrieval setup.

Build vs. don't build

Build when:

• You have proprietary data that is a differentiator
• Existing backends (REST, GraphQL, DB) need to be wrapped
• Tenant isolation and compliance requirements are high

Don't build when:

• A good official MCP server exists (monday, Notion, GitHub etc.) — use that as default
• The use case is read-only and public — a proxy on top of a search API is usually better

Bottom line

An MCP server is no longer a technical bet — the only question is how seriously you mean it. If it's meant to be a distribution channel (see Till's article), it needs to be production-ready. The five layers above are our mandatory checklist.

Working on an MCP server, or need one that survives more than the next two demos? Let's talk →
